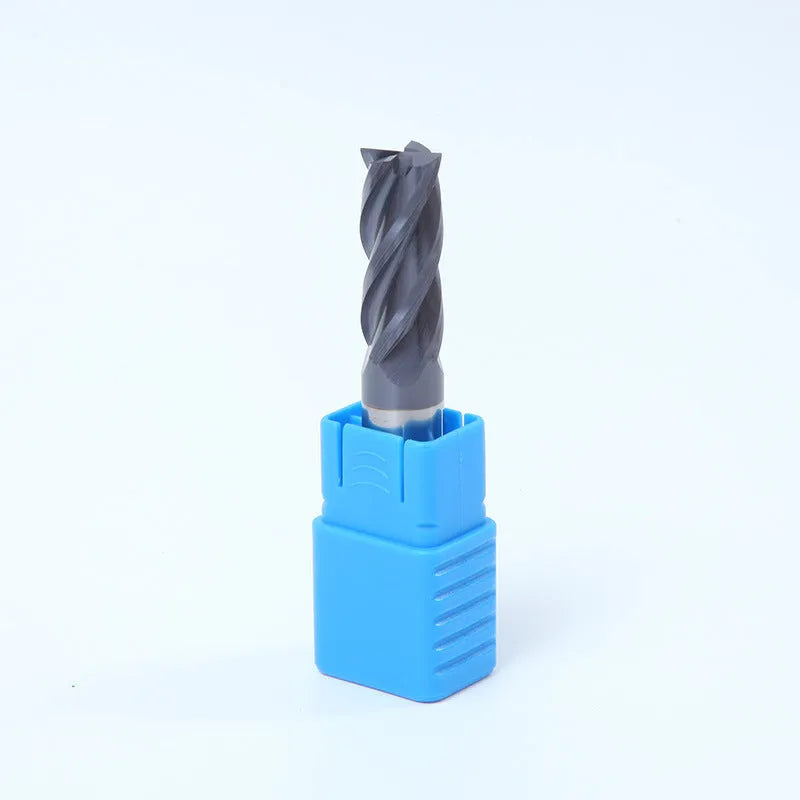

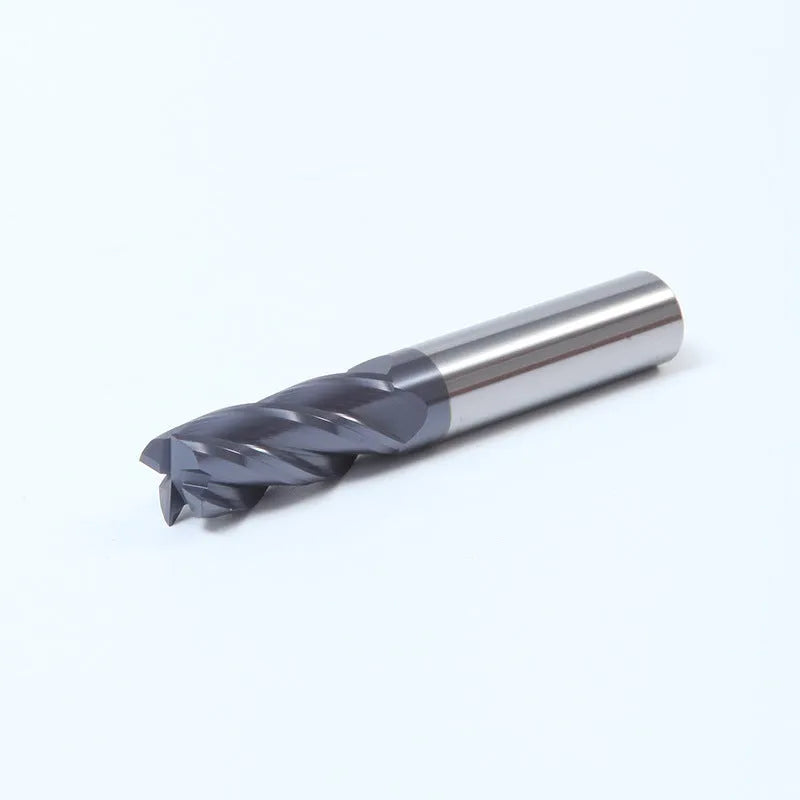

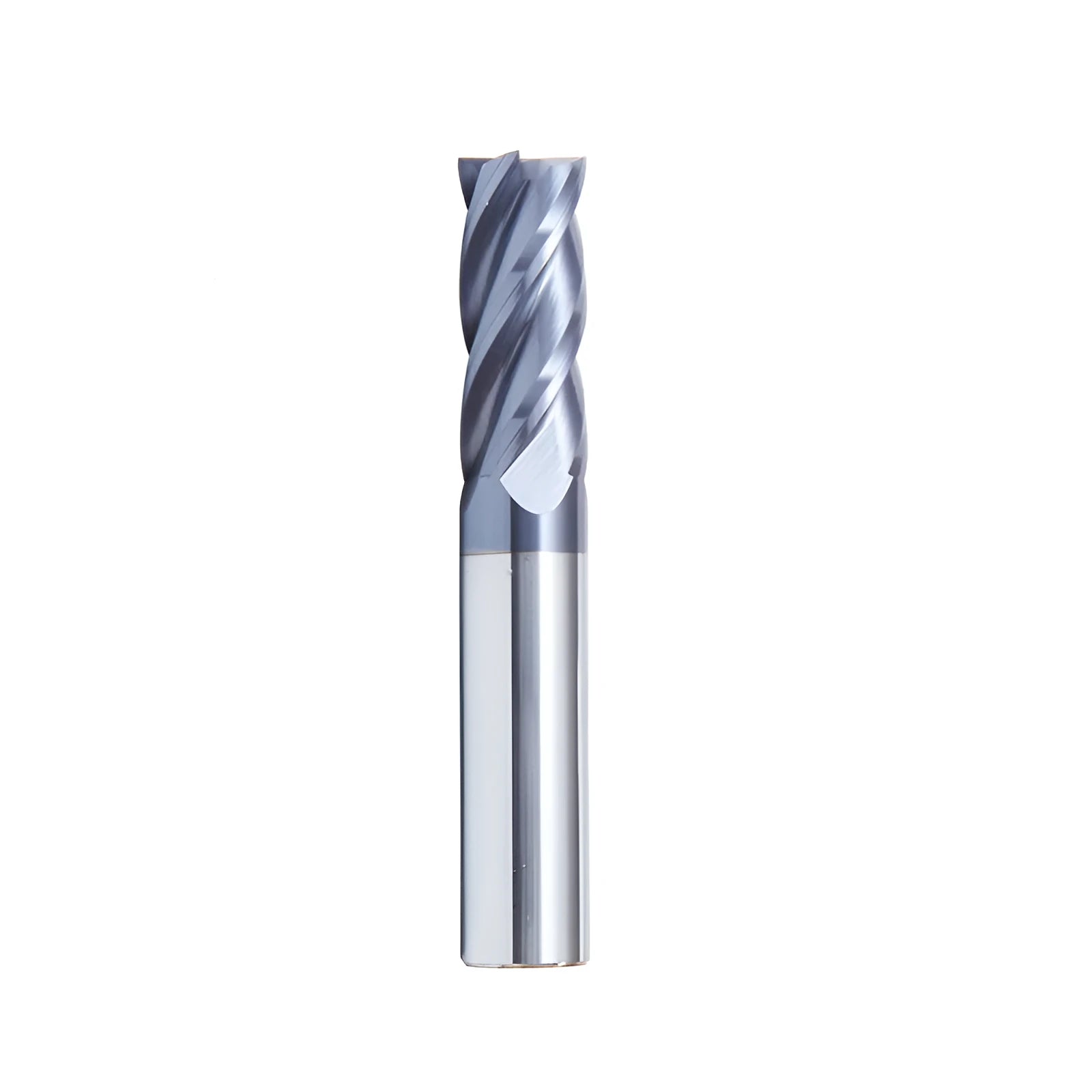

Carbide Milling Cutter with Spiral Edge and Straight Shank for Metalworking Applications
This carbide milling cutter is engineered for precision metal removal in both CNC and manual milling setups. Constructed from hard alloy, it is built to withstand the demands of cutting various metals, offering a balance of durability and performance. The tool's design centres on practical functionality, with a straight shank for reliable clamping and a spiral cutting edge form paired with a four-slot configuration. This combination aims to manage heat and swarf more effectively than simpler designs, potentially contributing to a smoother finish and extended tool life during sustained use. Available in a systematic range of sizes, it provides a versatile option for workshops needing a reliable cutting tool for general fabrication, mould making, or component production.
Features and Construction
The milling cutter's build is focused on the core requirements of effective metal cutting. Its specifications cover a broad range to accommodate different depths of cut and material volumes.
Material and Build
The tool body is made from hard alloy, commonly known as carbide, which is selected for its superior hardness and resistance to high-temperature wear compared to high-speed steel. This material choice is fundamental to the cutter's ability to machine ferrous and non-ferrous metals without rapid edge degradation. The construction includes a four-slot design along the flute length. This feature increases the number of cutting edges and creates more channels for chips to exit the cut, which helps in reducing clogging and can lead to a more stable cutting process with less vibration.
Size and Practical Fit
The product line is defined by a logical sizing system. The blade diameter, indicated by the model number (e.g., D4, D6 up to D20), directly corresponds to the shank diameter, ensuring a proportionate and robust connection to the machine tool holder. Blade lengths are offered from a short 3mm up to 70mm, allowing for shallow engraving or deeper profiling work. The overall tool length ranges from a compact 50mm to a longer 150mm, which determines the maximum depth the tool can reach from the tool holder. Specifics such as the ball head diameter and exact chamfering angle are model-dependent and should be verified with the supplier for precision applications.
Uses and Placement
This cutter is suited for a variety of milling operations where metal removal is the primary task. Its design makes it a general-purpose tool within a workshop's arsenal.
Event or Professional Use
In professional machining environments, such as job shops or manufacturing facilities, this type of cutter is routinely used for operations like face milling, slotting, and peripheral milling. The range of sizes means operators can select a D4 cutter for fine detail work or a larger D20 model for aggressive stock removal. The straight shank is compatible with collet chucks commonly found in milling machines and CNC spindles, making it a straightforward tool to integrate into existing workflows without requiring specialist holders.
Everyday Home Use
For advanced hobbyists or small workshops with bench-top milling machines, this cutter provides a professional-grade option for model engineering, toolmaking, or custom part fabrication. The availability of smaller diameters like D4 or D6 makes it applicable for detailed work on projects involving aluminium, brass, or mild steel. The clear model numbering and size correlation help users select the appropriate tool for their machine's capacity and the specific dimensions required for their project.
Benefits and Buying Value
The value of this milling cutter lies in its standardised design, material suitability, and range of options, which together offer a practical solution for repeated metal cutting tasks.
Reuse and Low Maintenance
As a solid carbide tool, it can be re-sharpened multiple times by a specialist grinding service to restore its cutting profile, extending its usable life far beyond that of a disposable insert tool for certain users. Between sharpenings, maintenance involves basic cleaning to remove built-up chips and inspecting for damage. The absence of complex moving parts or multiple components makes it a simple tool to store, handle, and maintain compared to modular cutter systems.
Why Choose This Product
This carbide milling cutter presents a logical choice for users who need a standard, effective cutting tool without the complexity of a custom solution. Its comprehensive size range within a single product line simplifies inventory, as many common diameters and lengths are covered. The spiral edge and four-flute design represent a proven, efficient geometry for general milling. For buyers, the key decision points are selecting the correct diameter for the job and confirming the precise ball head geometry if required, which the supplier can assist with, ensuring the tool matches the intended application accurately.
