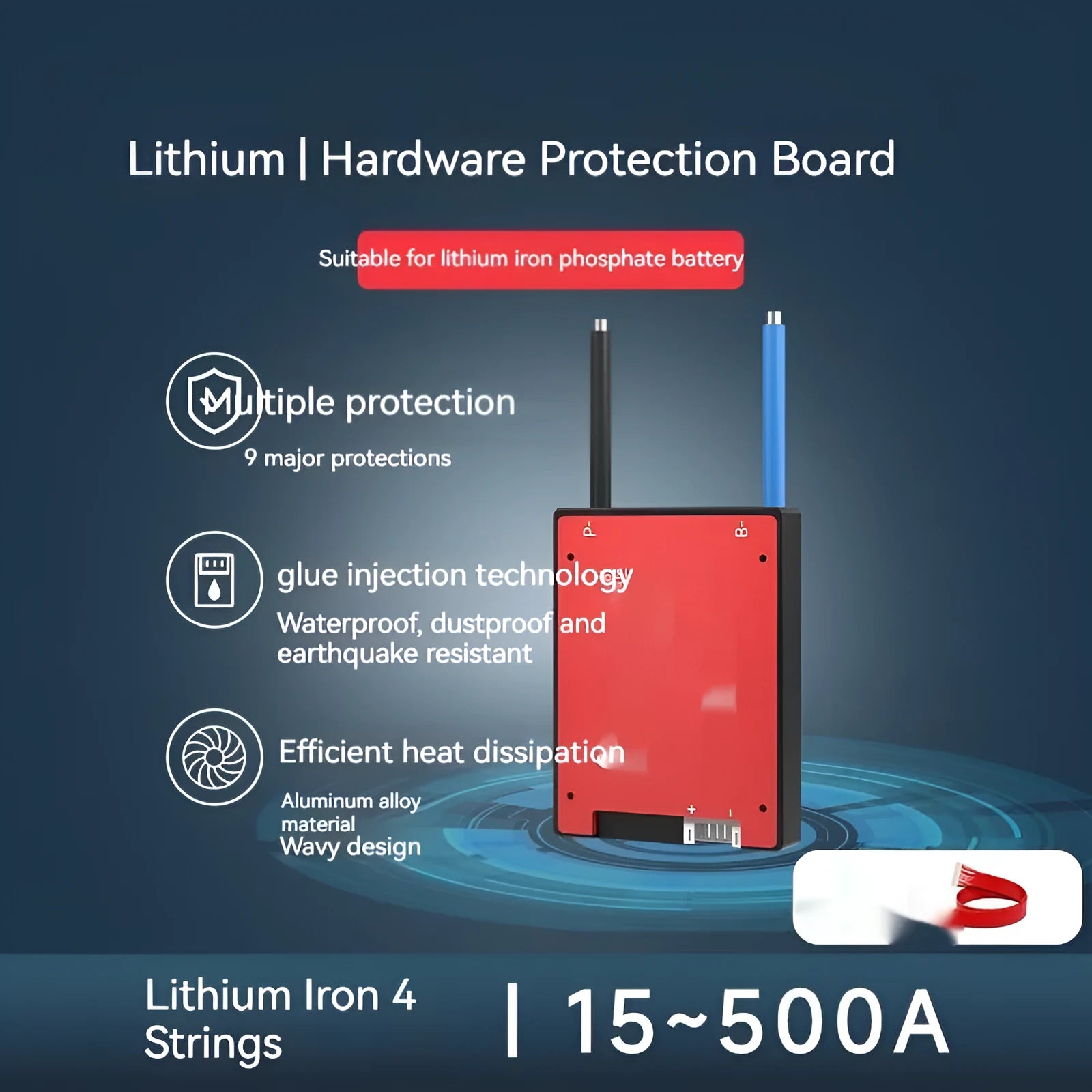

Dali 4-String Lithium Iron Phosphate Battery Protection Board with Balancing

This Dali battery protection board is engineered to safeguard 4-string lithium iron phosphate (LiFePO4) battery packs, offering a robust solution for DIY energy storage and power systems. By monitoring cell voltages and current flow, it prevents dangerous conditions such as overcharging, over-discharging, and short circuits. The same-port design simplifies installation by utilising a single connection for both charging and discharging processes, reducing wiring complexity. With options ranging from 15A to 500A, and select models featuring active cooling fans, this board adapts to a wide variety of power requirements while ensuring cell longevity through automatic balancing.

Core Safety Features

The primary function of this unit is to provide comprehensive protection for your battery investment. It continuously monitors the status of each cell in the 4-string series, intervening immediately if parameters exceed safe limits. This proactive approach prevents thermal runaway and ensures the structural integrity of the battery pack remains intact over thousands of cycles.

Overcharge and Over-discharge Protection

The board cuts off the circuit if any cell voltage rises too high during charging or drops too low during use. This strict voltage regulation is vital for LiFePO4 chemistry, preventing permanent capacity loss or safety hazards associated with voltage extremes. Users can rely on the system to automatically disconnect the load or charger when necessary.

Current and Short Circuit Safety

Beyond voltage monitoring, the protection board manages current flow to prevent overheating. If a short circuit occurs or the load demands more current than the rated limit, the board interrupts the flow instantly. This feature protects both the battery cells and the connected devices from damage due to electrical faults.

Automatic Cell Balancing

A critical feature for multi-cell packs is the integrated balancing function. As cells charge, the board ensures that all four strings reach the same voltage level, correcting minor discrepancies that naturally occur over time. This process maximizes the usable capacity of the pack and significantly extends its overall service life.

Design and Configuration

The physical and electrical design of this protection board focuses on ease of integration and reliability. The same-port configuration is particularly advantageous for compact builds where space for separate charge and discharge terminals is limited.

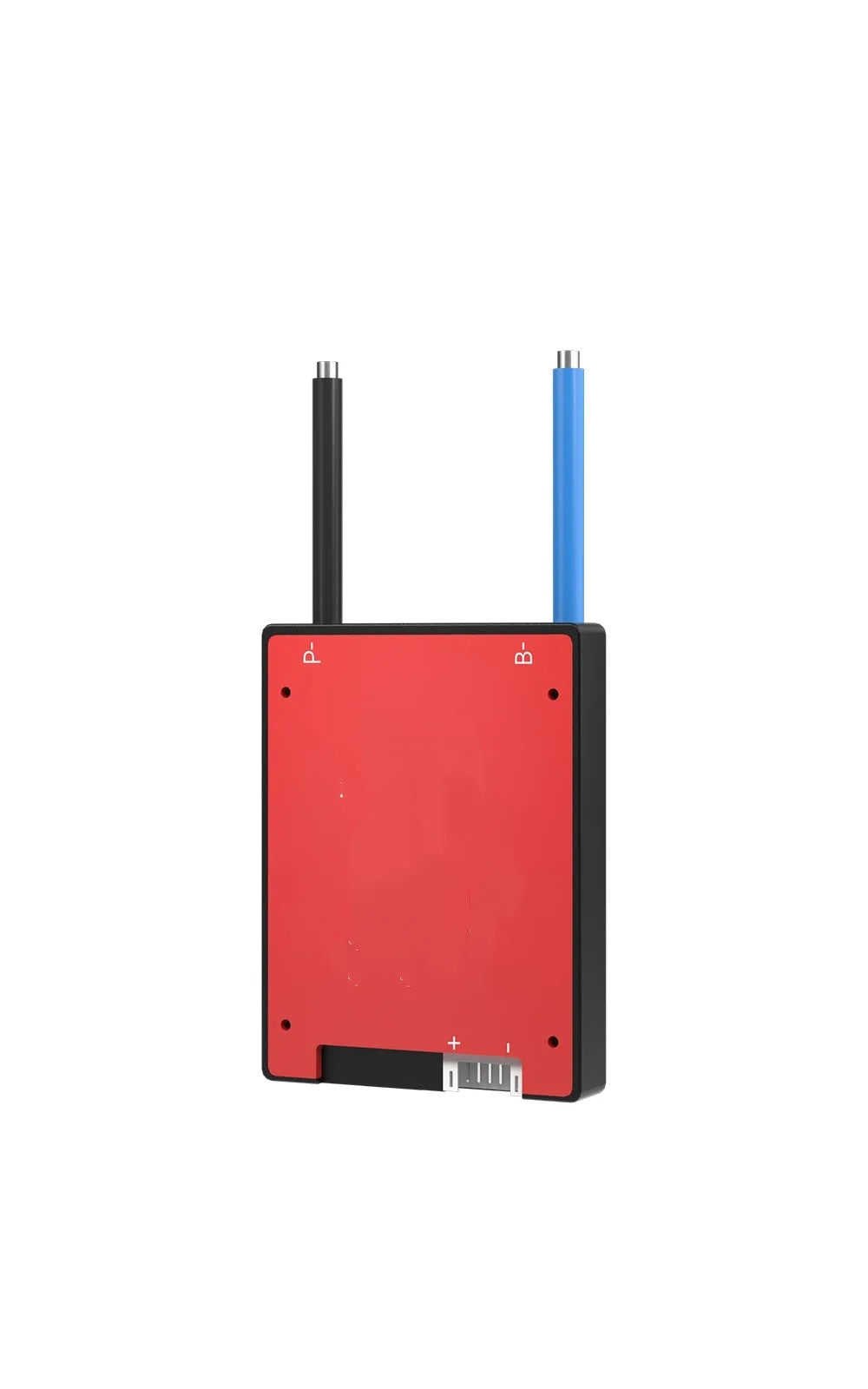

Same-Port Architecture

Unlike dual-port systems, this board uses a single set of terminals for both input and output. This reduces the number of connections required, minimising potential points of failure and simplifying the wiring diagram for builders. It is an ideal choice for retrofitting existing setups or creating clean, professional-looking battery banks.

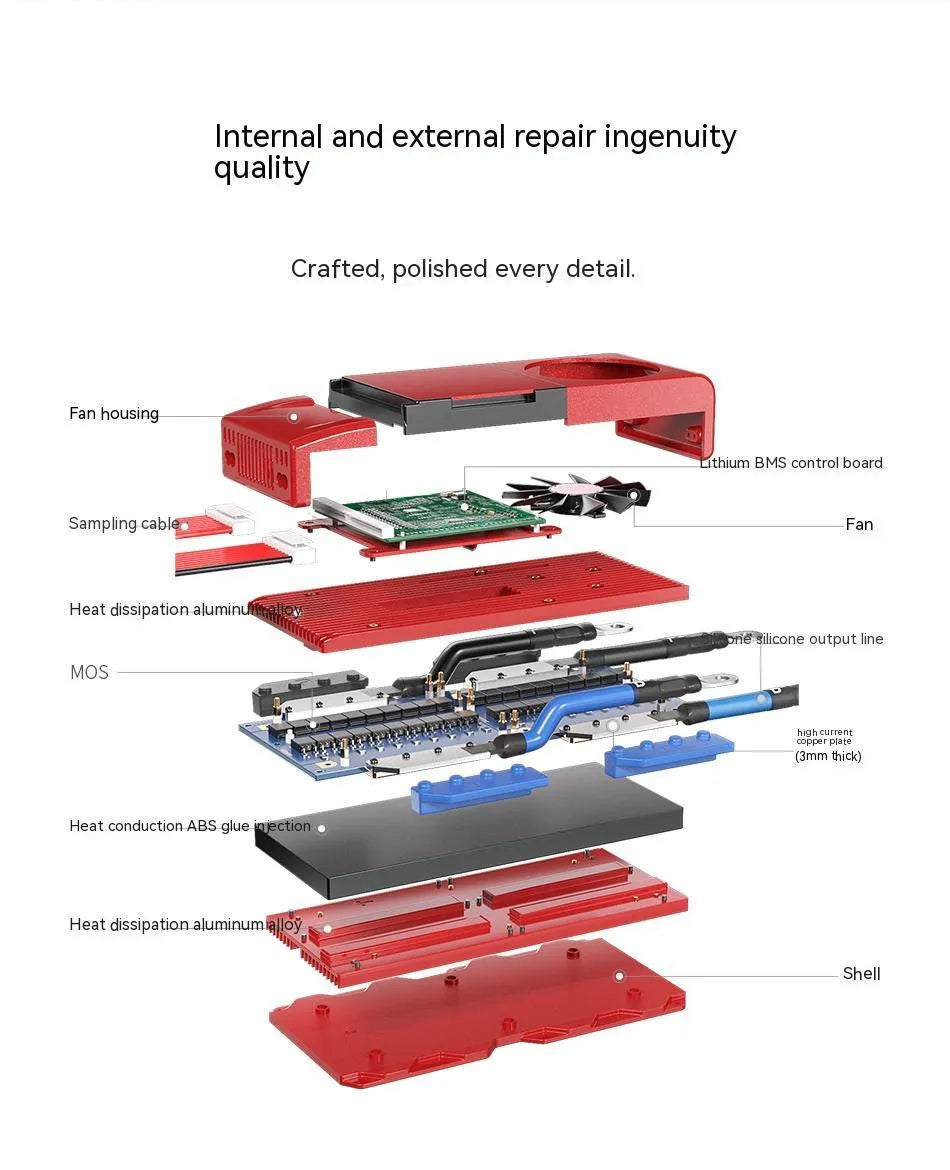

Amperage and Cooling Options

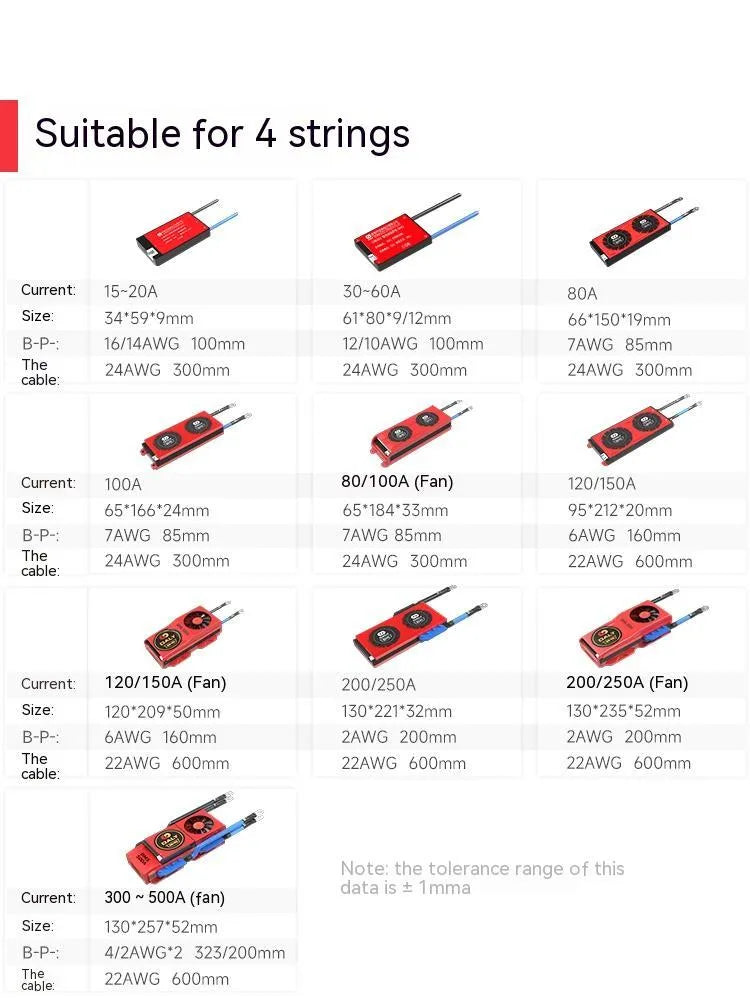

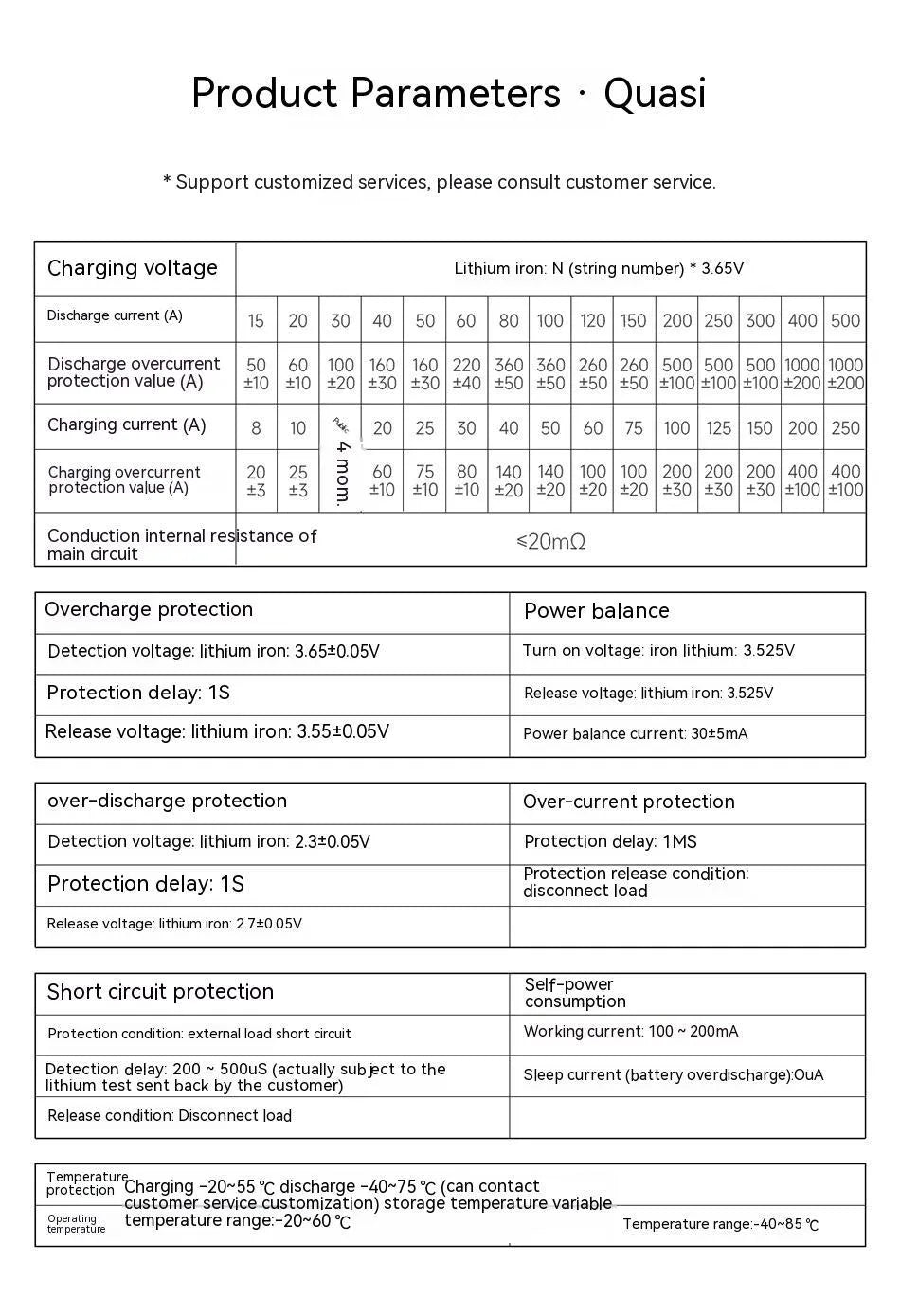

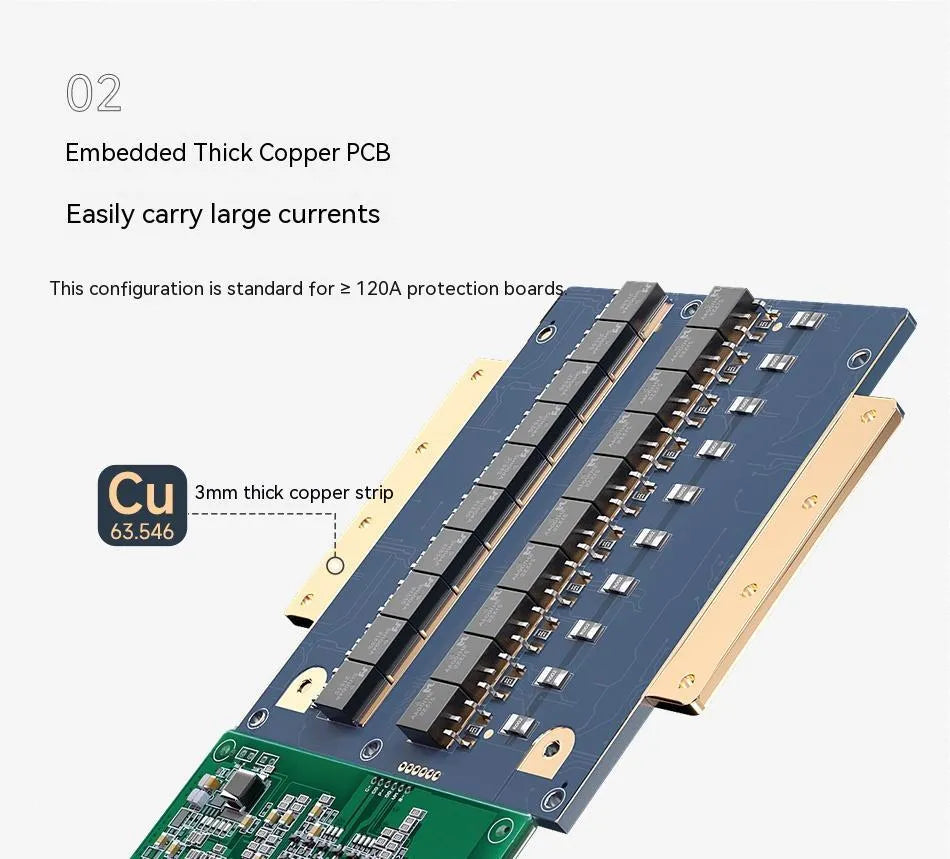

The product line offers a vast selection of current ratings, from small 15A units for light applications to massive 500A boards for high-power systems. For higher current models, versions with integrated cooling fans are available. These fans activate to dissipate heat generated during heavy load or rapid charging, maintaining optimal operating temperatures.

Technical Compatibility

Compatibility is strictly defined by chemistry and cell count. This board is designed solely for lithium iron phosphate cells arranged in a 4-string (4S) configuration, resulting in a nominal 12V system. It is not compatible with lithium cobalt, NMC, or lead-acid batteries, nor does it support 3-string or 5-string arrangements.

LiFePO4 Specificity

The voltage thresholds for protection and balancing are calibrated specifically for the flat voltage curve of lithium iron phosphate chemistry. Using this board with other lithium types could result in improper charging levels or failure to protect the battery adequately. Always verify your cell chemistry before installation.

System Integration

When building your pack, ensure that the chosen amperage rating exceeds your maximum expected load. For continuous high-draw applications, selecting a model with a fan is recommended to ensure consistent performance. The board serves as the brain of the battery, requiring careful assembly alongside high-quality cells and nickel strips.
