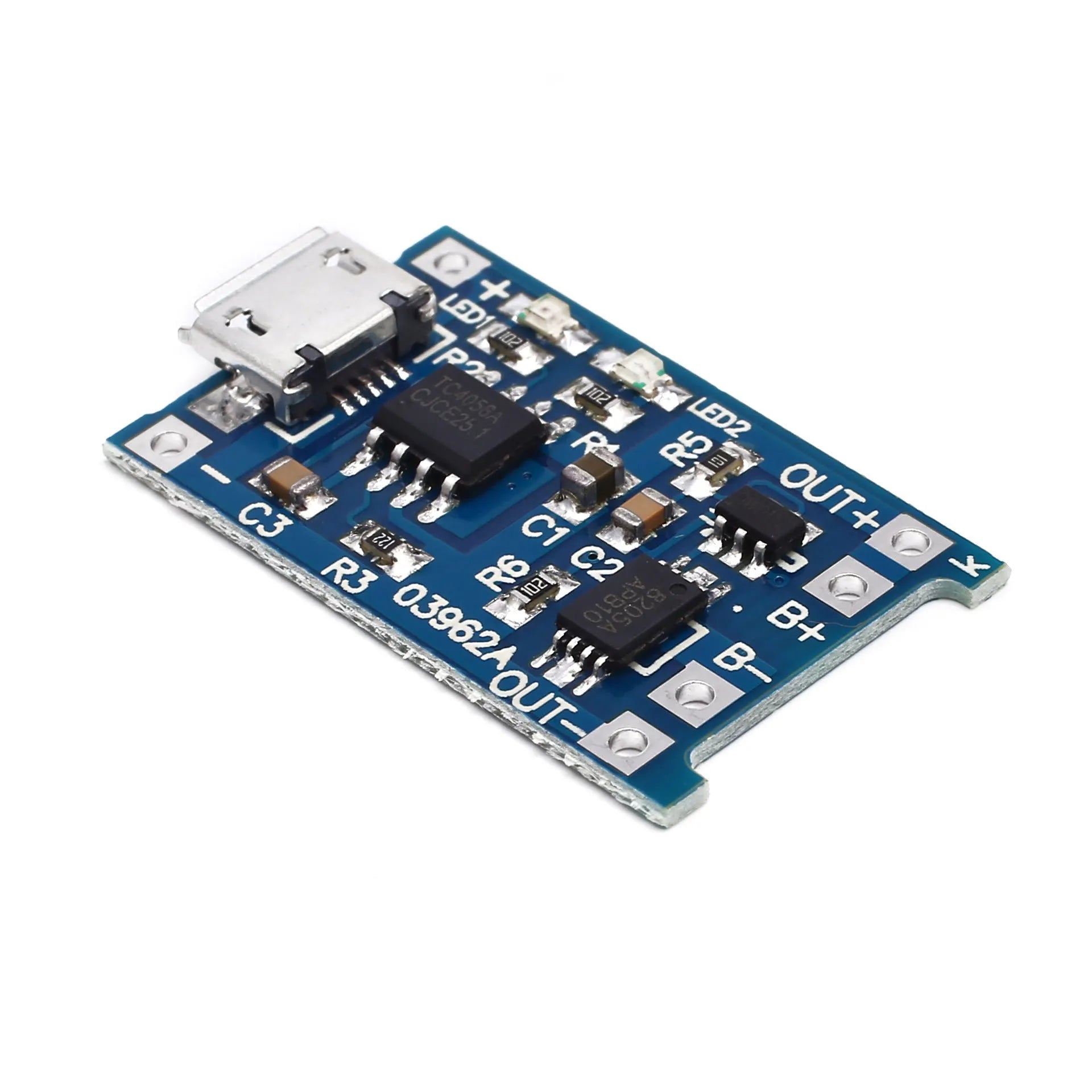

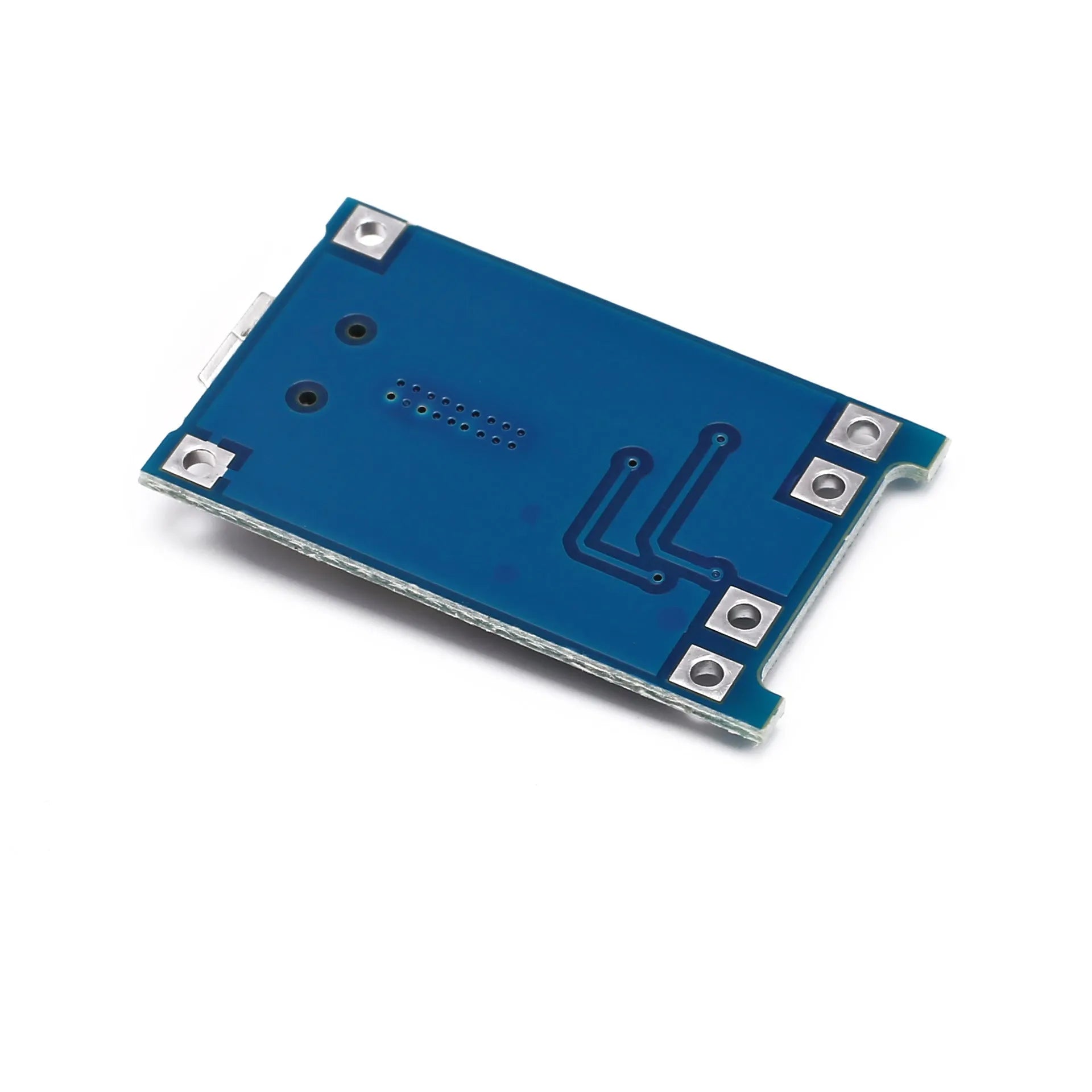

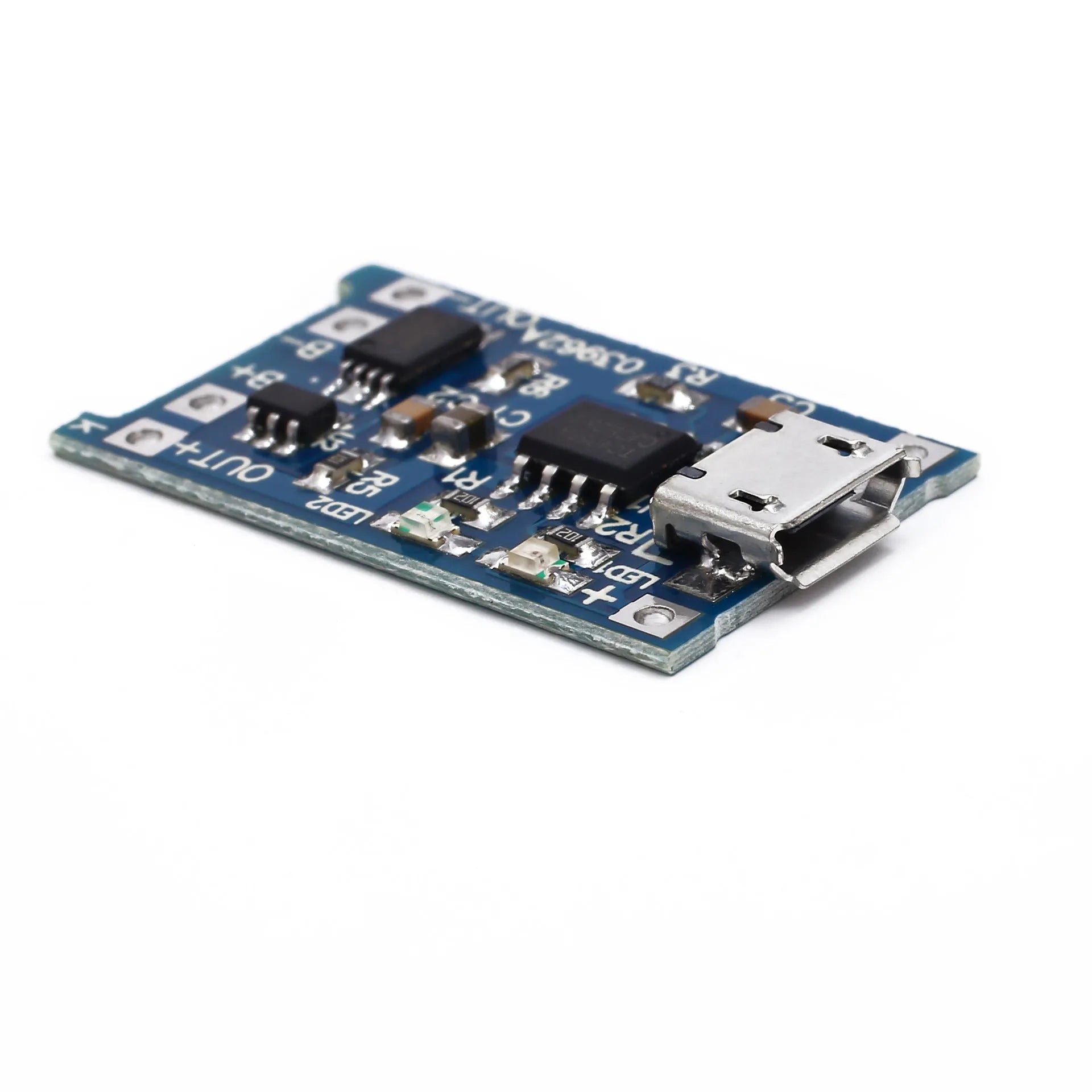

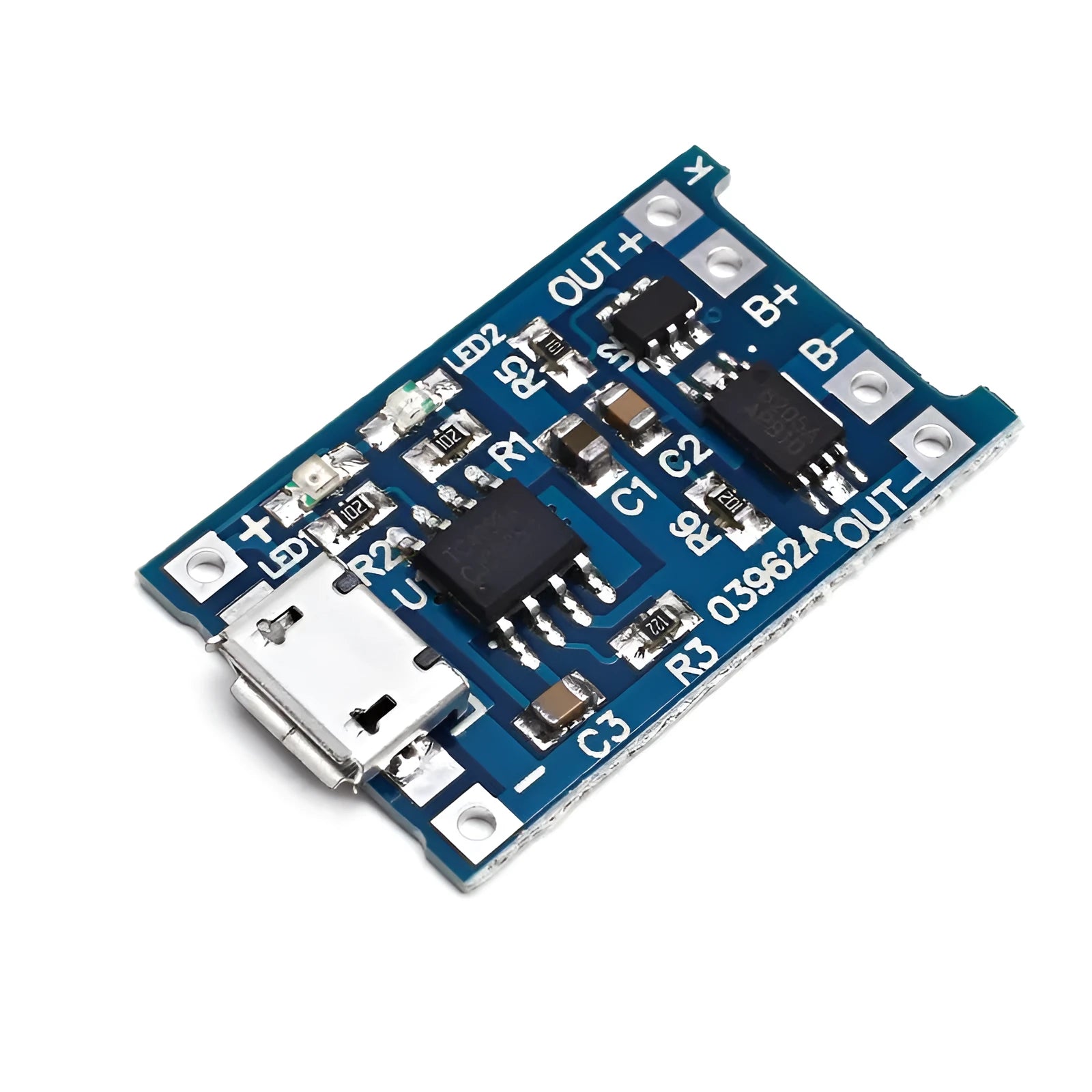

Compact 5V Lithium Battery Charger and Protector Board with 1000mA Current and 3A Protection

This all-in-one lithium battery management board combines charging circuitry and protective features onto a single, space-efficient printed circuit board (PCB) measuring just 2.6 centimetres by 1.7 centimetres. Designed for makers, electronics hobbyists, and repair technicians, it simplifies adding safe battery charging to projects by accepting a common 5-volt input—compatible with many USB power supplies and wall adapters. The board delivers a substantial 1000mA (1 Amp) maximum charging current to replenish compatible cells efficiently and incorporates critical safeguards, including over-discharge and overcurrent protection, directly on the PCB. Available with a blue solder mask, this module provides a documented set of electrical specifications for integration where reliable, basic lithium battery management is required.

Features and Construction

The board's functionality is defined by its key electrical parameters and physical build. It is a dedicated integrated circuit solution, meaning the charging logic and protection circuitry are combined, reducing external component count. The specifications provided allow for informed integration into a wider project, focusing on the essential voltages and currents for operation and safety.

Material and Build

The product is constructed as a standard printed circuit board (PCB). The source indicates it is available in a blue colour variant, which refers to the colour of the solder mask coating on the board. The integrated design means the core charging IC, protection IC, supporting passive components like resistors and capacitors, and connection pads are all assembled onto this single PCB substrate. This construction offers a ready-to-use module that doesn't require the user to source and wire individual discrete components.

Size and Practical Fit

The physical dimensions are a key differentiator for this board. At 2.6cm long and 1.7cm wide, it is a genuinely compact component. This small footprint makes it suitable for embedding into portable devices, custom enclosures, or other projects where internal space is at a premium. The size allows it to be mounted in tight spots or on prototype boards without consuming excessive area. The 3A overcurrent protection threshold is a practical specification for many small to medium-sized lithium battery applications, helping to prevent damage from accidental short circuits.

Uses and Placement

This integrated board is intended for scenarios where a single lithium-ion or lithium-polymer cell needs managed charging and operational protection. Its 5V input makes it highly versatile, as this voltage is readily available from numerous sources. The application scope ranges from professional prototyping to hobbyist DIY, centred on adding or replacing battery management functionality.

Event or Professional Use

For professional prototyping, electronics repair, or educational purposes, this board serves as a reliable, pre-built module. Technicians can use it to replace faulty charging circuits in small consumer electronics, provided the voltage and current specs match the original device's requirements. In a lab or workshop setting, it allows for quick testing of battery-powered prototypes without designing a management circuit from scratch. The specified 4.2V charging cut-off voltage (±1%) is standard for many common lithium cobalt oxide (LiCoO2) cells, making it suitable for a wide array of existing batteries and devices.

Everyday Home Use

For DIY enthusiasts and makers, this board is a practical component for custom projects like handheld gaming devices, portable speakers, LED lighting setups, or backup power packs. The inclusion of both charging and protection simplifies the build process and enhances safety for homemade devices. The 2.5V over-discharge protection voltage helps extend the overall lifespan of the connected battery by preventing deep discharge cycles, which can permanently damage lithium cells. Users should ensure their chosen battery's recommended charge current does not exceed the board's 1000mA maximum.

Benefits and Buying Value

The value of this integrated board lies in its consolidation of necessary functions, its defined specifications for safe integration, and its compact form factor. It provides a documented, ready-made solution that can save time and reduce complexity compared to a discrete component approach.

Reuse and Low Maintenance

As a solid-state electronic module with no moving parts, it requires no routine maintenance. Its durability is inherent to the quality of its soldered components and PCB. The board can be reused across multiple projects or prototypes if desoldered carefully. The clear specification of protection thresholds (2.5V, 3A) provides a known safety framework for the battery, which is a reusable benefit across any project it is installed within, helping to protect what is often the most expensive and safety-critical component in a portable device.

Why Choose This Product

Choose this board for its combination of a practical 5V input, a substantial 1000mA charging capability, and integrated protection features on a very small PCB. It is a suitable choice when you need a documented, off-the-shelf battery management solution and your project's electrical requirements align with its published specs: a 5V input source, a single-cell lithium battery with a 4.2V charge curve, and a need for the listed protection features. The provided dimensions allow for precise planning in cramped enclosures, and the blue PCB offers a distinct visual identifier if colour-coding components in a complex project.
