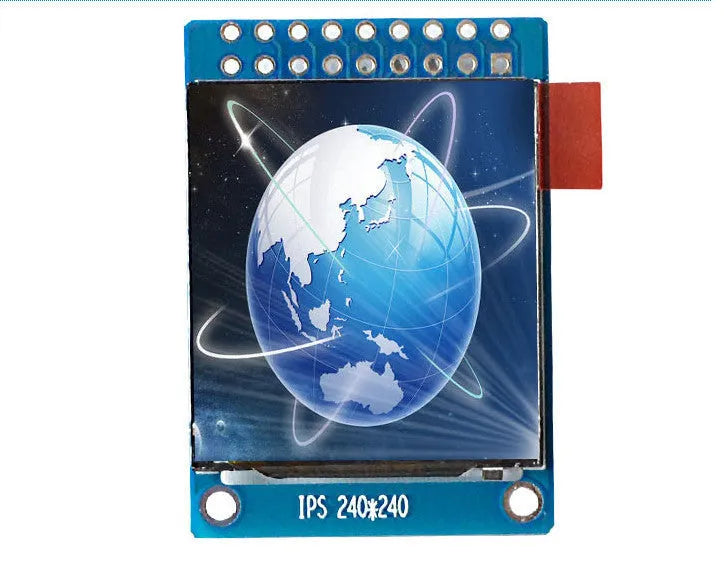

1.3-Inch 240x240 IPS LCD Full Colour Display with ST7789 Chip and Dual Interface Support

This compact 1.3-inch IPS LCD display module offers a high-definition colour viewing experience for embedded systems, custom electronics, and prototyping projects. With a square 240x240 pixel resolution spread across a 23.4x23.4mm active area, it provides clear and vivid imagery suitable for status readouts, basic graphics, or user interface elements. The display's flexibility is enhanced by its adjustable orientation and compatibility with two common communication protocols, making it a versatile component for makers and engineers. Its robust operating temperature range from -20 to 70 degrees Celsius ensures it can function in varied environmental conditions, from chilly workshops to warm enclosures.

Features and Construction

Built around core specifications tailored for integration, this display module combines a quality screen with practical connectivity options. The construction focuses on delivering reliable performance within a minimal footprint, supported by a dedicated control chip.

Material and Build

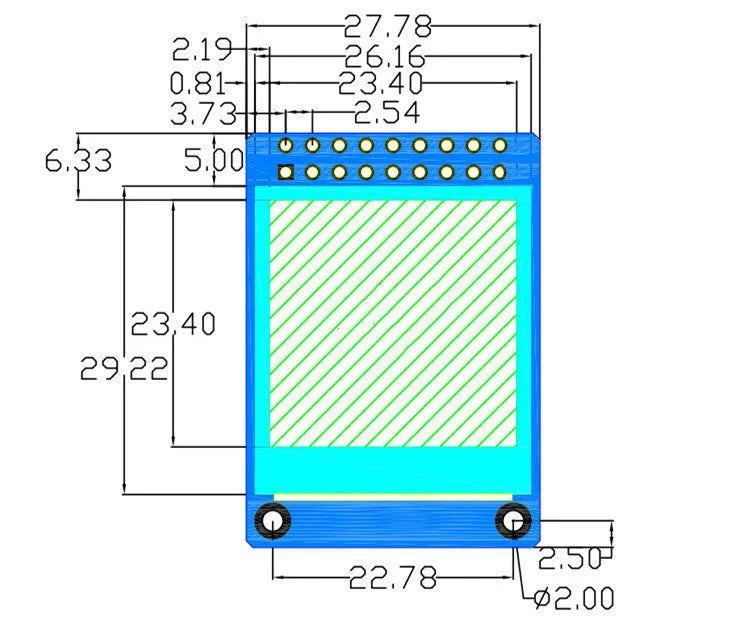

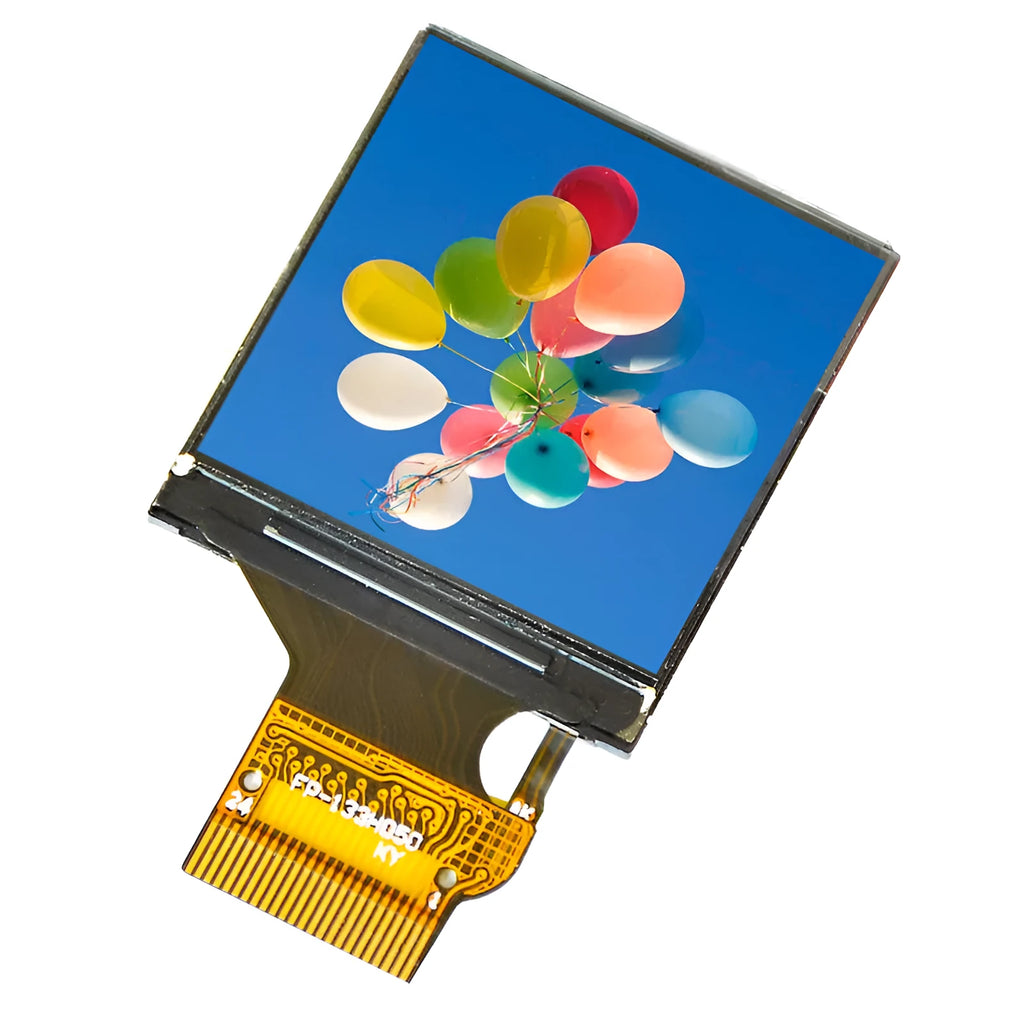

The display centres on a high-definition IPS (In-Plane Switching) colour screen, which typically offers wider viewing angles and better colour reproduction than standard TFT LCD panels. This material choice contributes to the vivid colour output mentioned in the specifications. The module is assembled to house this screen and its supporting electronics within a physical size of 27.78mm by 39.22mm, creating a compact unit that does not require excessive space in a project enclosure.

Size and Practical Fit

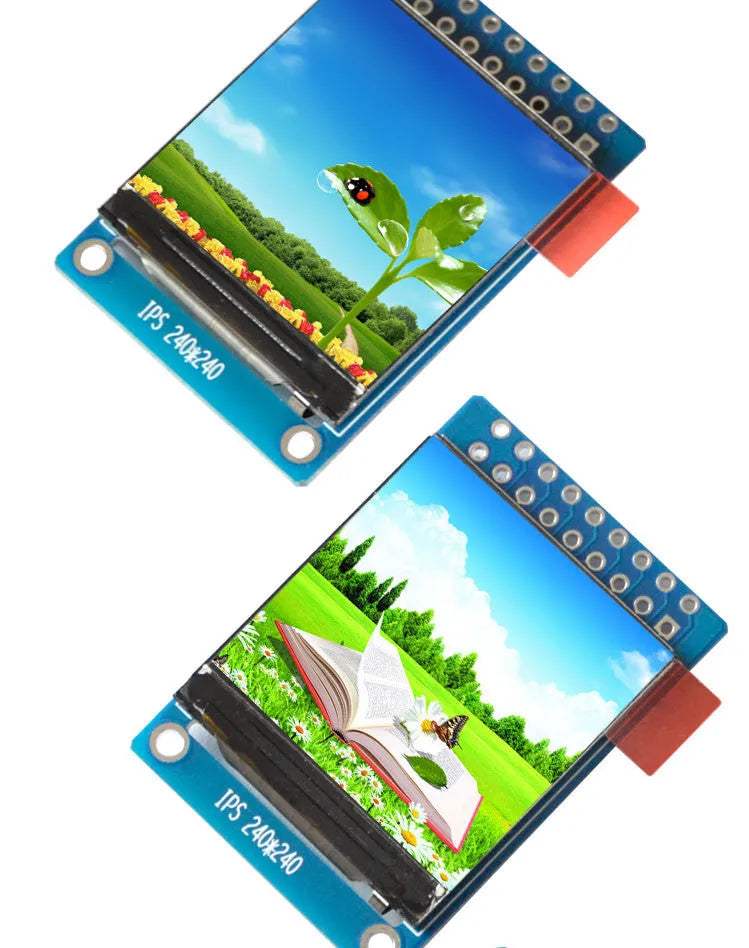

The 1.3-inch diagonal screen size provides a balanced viewing area that is large enough for readable text and simple graphics yet small enough for portable or space-constrained devices. The actual viewing area measures 23.4mm on each side, forming a perfect square. This square shape and the adjustable display direction allow for installation in either portrait or landscape mode, adapting to the layout of your project. The 18-pin connector footprint defines the interface point, though users must supply and attach their own pins.

Uses and Placement

This display's specifications make it suitable for a range of applications where a small, colourful screen is needed. Its dual interface support opens up compatibility with many popular microcontrollers and development boards.

Event or Professional Use

In professional or event settings, this display could serve as a status panel for equipment, showing sensor readings, timer counts, or system alerts. Its full-view capability ensures the information is visible from various angles, which is useful for multi-person monitoring. The wide operating temperature range supports use in environments that are not climate-controlled, such as industrial settings or outdoor installations, provided they stay within the -20 to 70°C bounds.

Everyday Home Use

For hobbyists and makers at home, this module is ideal for custom projects like smart home controllers, weather stations, retro gaming devices, or personalised gadgets. The high-definition IPS screen makes visuals pop for decorative or interactive builds. The requirement to handle the pin installation offers a hands-on step that allows users to tailor the connection to their specific wiring or prototype board.

Benefits and Buying Value

The value of this display lies in its combination of a quality screen type, flexible integration options, and clear, provided specifications that allow for informed project planning.

Reuse and Low Maintenance

As a solid-state electronic module with no moving parts, it requires minimal maintenance once installed. Its durability is linked to staying within its specified temperature and electrical limits. The module can be repurposed across different projects if desoldered carefully, thanks to its standard interfaces. The long-term use depends on the operating conditions and the quality of the user's pin soldering work.

Why Choose This Product

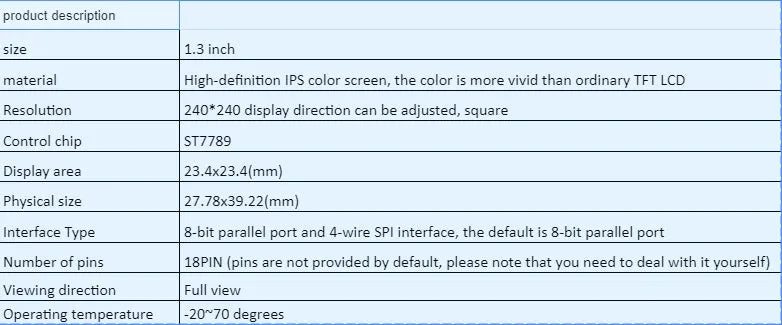

This display module presents a defined set of capabilities: a 1.3-inch IPS screen with 240x240 resolution, driven by an ST7789 chip, offering a choice between 8-bit parallel and SPI interfaces. The specifications are clearly stated, including the exact viewing area size, physical dimensions, and temperature limits. This transparency allows buyers to assess fit for their specific needs without guesswork. The need to provide pins is explicitly noted, preventing surprises during assembly.
